THERMOSTAT FOR PANELS W/ 1 RELAY 71X29MM

Description

Thermostat for panels with 1 relay. Dimensions of panel hole 71×29 mm by Ako.

Ideal for positive services (Temperature higher than 3ºC). Defrost by compressor stop.

Stationary refrigerated units with positive temperature.

High temperature applications such as ovens, hot tables, steam baths, etc.

Cold / Heat operation configurable by the program.

Thermostat specially indicated for cameras, furniture and electrical cabinets.

The Darwin thermostat models are already programmed with the 3 most common applications (refrigeration, air conditioning or heating).

Range -50 to +99 ° C with NTC probe (included) and -50 to +150 ° C with PTC probe (optional)

Visualization and control at 0.1 ºC.

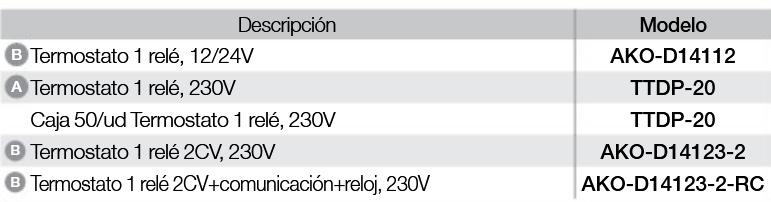

AKO-D14123-2-RC equipment integrates RS-485 communication (C) and real-time clock (R).

Relay commuted in AJO-D14112, AKO-D14123-2 and AKO-D14123-2-RC for compressor control and crankcase heater.

TTDP-20 depth 43 mm, rest of equipment 61 mm.

Quick configuration by selecting one of the 3 applications already programmed (Refrigeration, air conditioning or heating).
