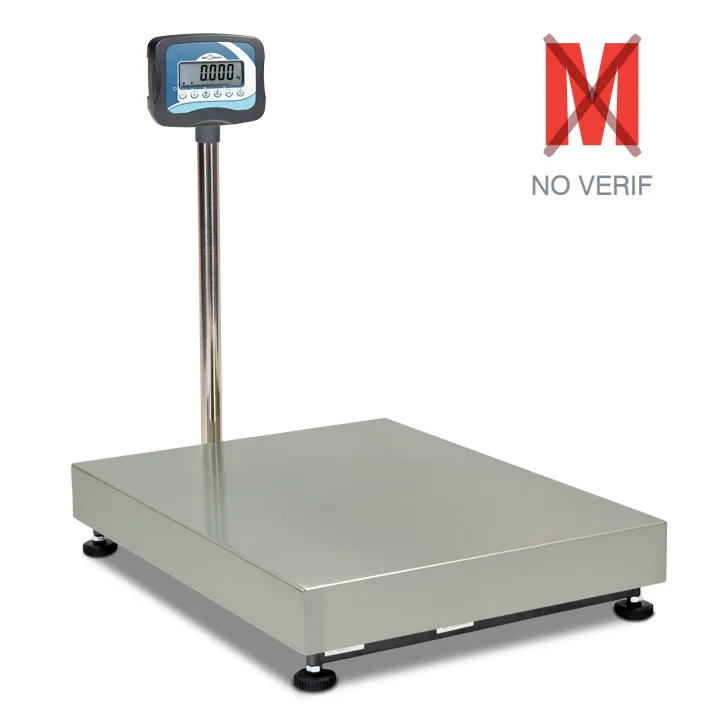

SCALE TMZ 150Kg 50x40cm

Description

CHARACTERISTICS:

• Tubular structure platform in painted steel, with stainless steel plate and stainless steel column.
• Aluminium cell with IP65 protection.
• 649 mm column with painted steel fixing base (Model P447 mm).
• 4 feet adjustable in height up to a 13 mm increase.
• Platform-viewer cable length: 1200 mm (up to 1370 mm, depending on model).
• ABS indicator, model BR15.
• IP54 protection.
• Waterproof keypad with 5 function keys and on/off keys.
• Backlit LCD display with 6 digits of 30 mm.
• Display backlighting with three modes: automatic, active and deactivated.
• ABS bracket for column.
• Includes wall mounting holes.
• Operating temperature: -10ºC +40ºC.
• Mains power supply with AC/DC 240Vac 50Hz adapter.
• Rechargeable battery 6V/4Ah.
• Battery consumption with backlight activated: 120 hours approx.
• Battery consumption with backlight off: approx. 160 hours.
• Gravity configurable.
• Unit 1 to choose between off, kg, t and g; Unit 2 to choose between off, lb, lboz; Unit 3 to choose between off, Taiwan Jin, CA or VISS.
• RS232 output. Data transmission with PC format and printer.
• Unit range / Multi range / Multi interval.
• Automatic auto power off (with desired time setting from 1 to 99 minutes).
• ENAC certificate (optional).

FUNCTIONS:

• Accumulation.
• Totalisation.
• Piece counting.
• Zero.
• Four hold modes: off, animal in motion, peak value, stable and stable with auto-cancellation to zero.
• Weight and piece checking (limit function) with visual signal and alarm.
• Three AD converter speeds (high, medium and low).
• Configurable gravity.
• Gross/net.
• Tare.
