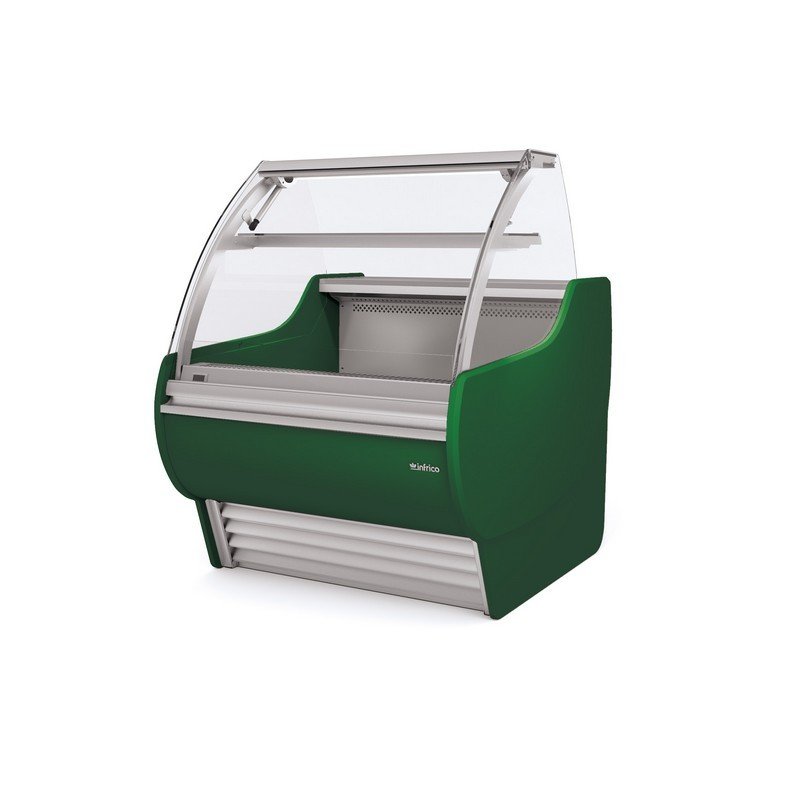

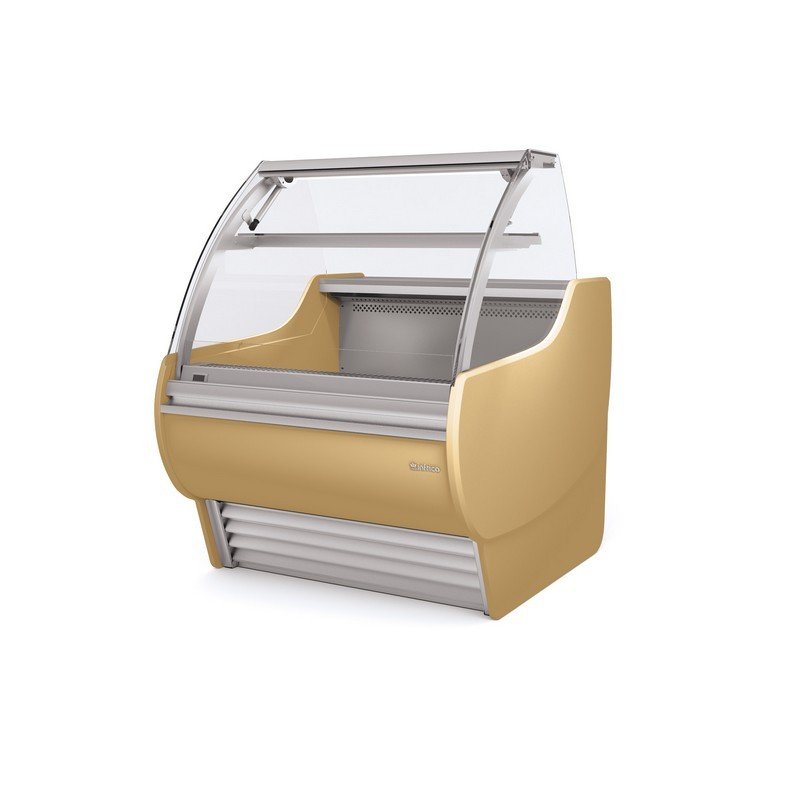

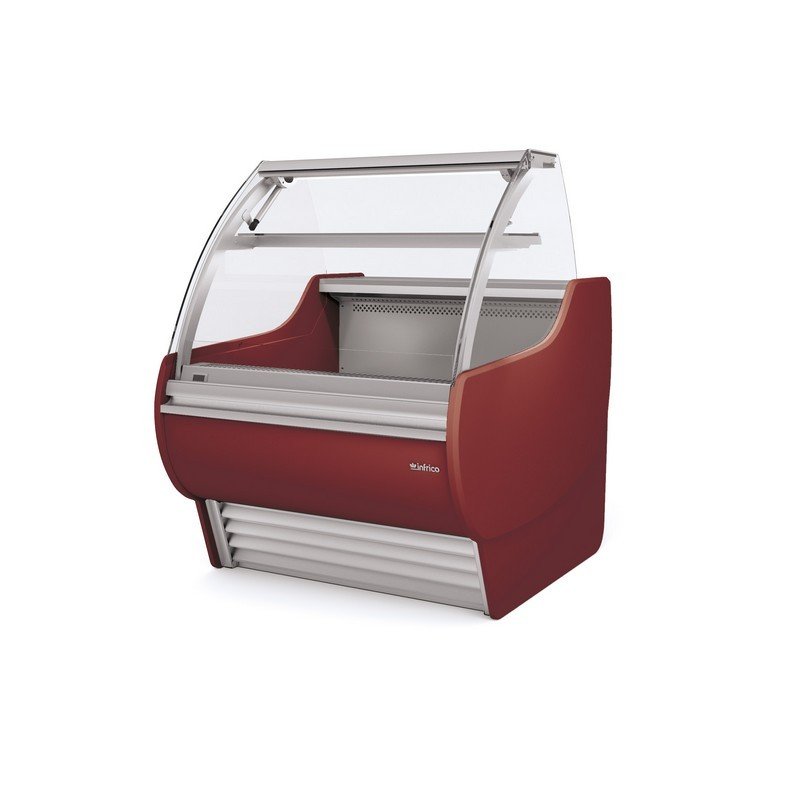

SEMI-STATIC REFRIGERATED MODULAR DISPLAY CASE + STORAGE BARCELONA

Description

Semi-static refrigerated modular display case with storage Barcelona series VBC with laminated steel plate available in different colors and stainless steel worktop. Available in different sizes.

EXTERIOR
– Laminated steel plate
– AISI 304 18/10 stainless steel worktop
– Lift-up curved tempered security glass system
– Enamelled steel base
– Storage door opening 425×255
– DM lacqued decoration with LED lighting

INTERIOR
– AISI 304 18/10 exhibition area
– Upper profile LED lighting “Grolux” type
– LED lighting shelf “Grolux” type
– Modulare Line

INSULATION
– Free CFC’s high density (40kg/m3) polyurethane insulation
with low GWP & zero ODP effect

REFRIGERATION
– Forced air refrigeration system
– Stainless steel evaporative doble trays first by
gas second by electrical resistance
– Control of the final defrost temperature
– Climatic class 4

Refrigerant: R-452

Semi-static evaporation

With Storage
Sides: 30+30 mm
Shelves: 1+1 OPT
Temperature: 0ºC/+6ºC
Automatic Defrost
Digital Control

*Available colors:
Violet, Orange, Blue, Maroon, Yellow
Sky blue, Red, Beige, Dark Green
Pink, White, Pistachio

*Available in different measures:

VBC9RE 938x1150x1290 mm

Puertas: 1

Compresor 1/2 HP

Consumo: 10,6kWh/24h

Potencia: 740W

Capacidad: 197L

Potencia frigorífica: 817W

–

VBC12RE 1250x1150x1290 mm

Doors: 2

Compressor 5/8 HP

Consumption: 14,2 kWh/24h

Power: 1000W

Capacity: 263L

Cooling capacity: 1096W

–

VBC15RE 1562x1150x1290 mm

Doors: 2

Compressor 3/4 HP

Consumption: 15 kWh/24h

Power: 1055W

Capacity: 328L

Cooling capacity: 1315W

–

VBC18RE 1875x1150x1290 mm

Doors: 3

Compressor 1 HP

Consumption: 18,3 kWh/24h

Power: 1295W

Capacity: 394L

Cooling capacity: 1506W

–

VBC25RE 2575x1150x1290 mm

Doors: 4

Compressor 1+1/6 HP

Consumption: 22,2 kWh/24h

Power: 1570W

Capacity: 525L

Cooling capacity: 2009W
